Specification
| item | value |
| ink type | Solvent Ink |
| Plate Type | Solvent Printer |
| Control Type | Push button |
| Resolution | 400dpi |
| Print Resolution | 400dpi |
| Printing Material | Pvc Vinyl,Flex Banner, Self-adhesive Vinyl |
| Print Speed | No |
| Power Mode | Power Supply |
| Printer Function Type | |
| Print Media | Pvc Vinyl,Flex Banner, Self-adhesive Vinyl |
| Type | Inkjet Printer |
| condition | New |
| place of origin | China |
| brand name | Ancoda |
| usage | Flex Banner Light Cloth Large Format Printer |
| automatic grade | Automatic |
| Color & Page | Multicolor |
| Voltage | 110/220V |
| dimensions(l*w*h) | 7460MM*1145MM*1760MM |
| weight | 2250 |
| warranty | 1 Year |
| Operating Voltage | ac 110-220v |
| Product Name | Starfire Solvent Printer |
| Model | AC-5306PRO |
| Printhead | Starfire1024, Konica 1024i, Konica 1024A Print Head |
| Ink Color | 4 Color/CMYK |
| Ink Type | Solvent Ink |
| Printing Size | 5300MM |
| Printing Material | Banner,Light Cloth,Roll Media Etc |
| Software | Maintop/ Photoprint/RIIN |
| Net Weight | 2050KG |
| Power | 2000W |
Product Description
Advanced innovation – Konica 512i-30pl printhead
Max print speed: 280㎡/h
| E512i – 5M Konica 512i Digital Solvent Printer | |||
| Printhead | 4 or 8 PCS Konica 512i-30pl | ||
| Print Mode (512i-30pl) | 360×360dpi/ 2P | 360×540dpi/ 3P | 480×360dpi/ 2P |
| Print Speed (512i-30pl) | 280㎡/h | 160㎡/h | 240㎡/h |
| Print Width | 5000mm | ||
| Media Types | Frontlit, backlit, vinyl, polyester, window film, mesh, backlit film, blue back paper | ||
| Heating System | 4 heating processes: before/ during/ after printing & ink heating | ||
| Drying System | 24 Drying fans and 3 infrared heating tubes | ||
| Cleaning System | Separated 2-way cleaning system (pressure & sucking) | ||
| Ink Types | 4 colors solvent-based inks (C, M, Y, K) | ||
| Dimensions | 6950×1250×1930mm (L×W×H) | ||
| NW/ GW | 2155KGS/ 2355KGS | ||
Application
- To print on almost any kind of flat materials – frontlit, backlit, flex banner, wall paper, lamp cloth, ect.
- For outdoor large format advertisement printing.
3. For high speed printing with high resolution.
Printhead Types
Konica 1024i Printhead
Max print speed: 480㎡/h
Nozzle amount: 1024pcs
Anti-clogging design, internal heater can help to control ink temperature.
Konica 512i Printhead
Max print speed: 280㎡/h
Nozzle amount: 512pcs
Waterproof steel head with auto cleaning and moisturizing system.
Detailed Image

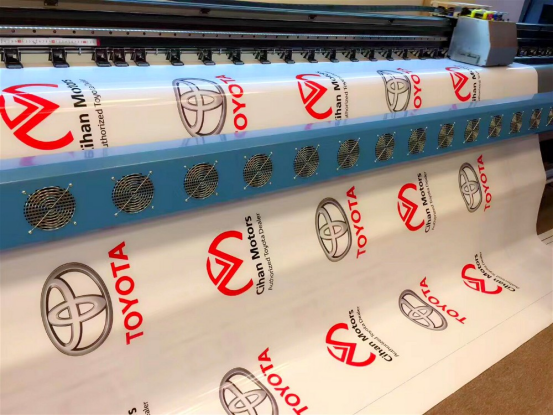

Drying System
24 drying fans and 3 internal infrared tubes guarantee high-quality and large printing output.

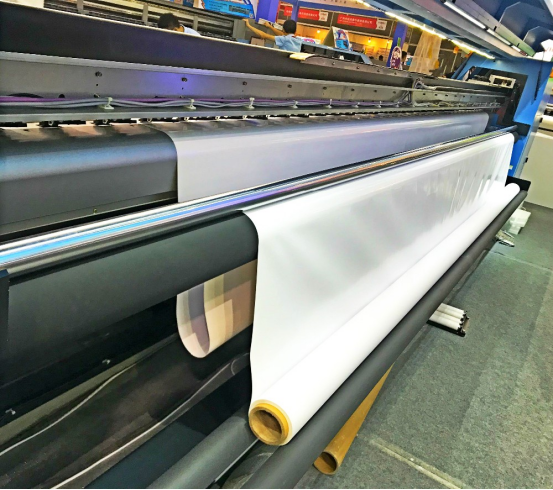

Material System
100% automatic roll-to-roll feeding system – more stable, more accurate, more felxible.

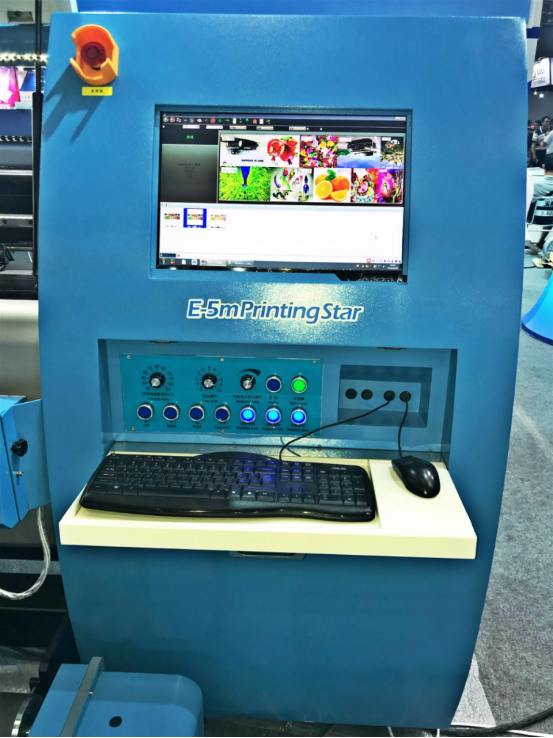

Internal LED Screen Computer

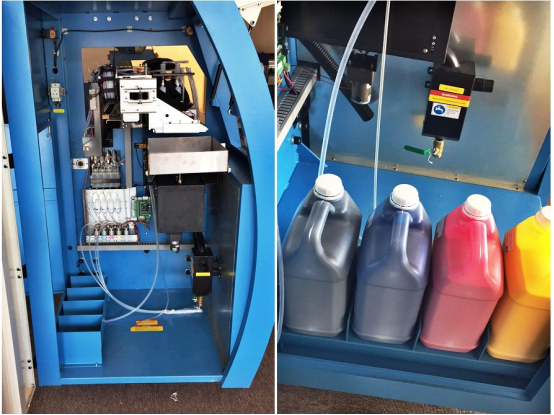

External Ink Supply
Convenient & efficient. Easy to change and cleanse, perfectly support high output.

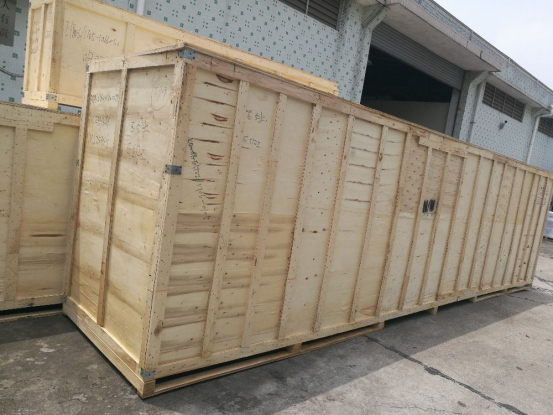

Package
| Package | |
|
Size |
7200 (L) * 1450(W) * 2000 (D) |
|
Weight |
2355KG |
|
Package |
Wooden carton |
